Premium steering tire designed for all positions in long-haul applications.

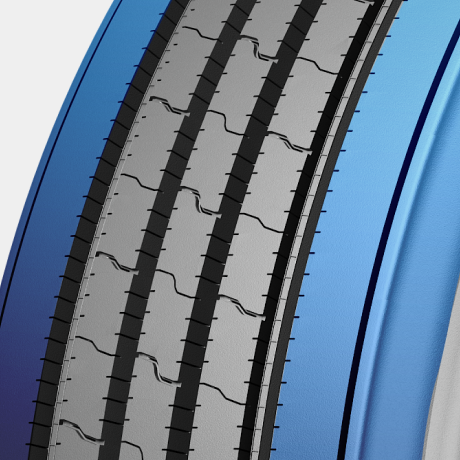

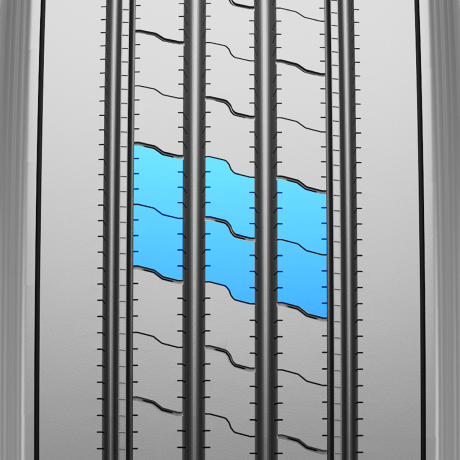

Features five-rib enhanced stability, multi-blade traction, unique shoulder grooves to reduce heat, and an ultra-wide tread pattern with specialized compounds to extend driving range.
| WHEEL DIAMETER | Size | L.S | Parts Number | Max PSI | Single tire max load LBS | Dual tire max load lbs | Measuring Rim | Approved rim width | OD inch | sw inch | td 32ND | Sidewall |
| 22.5" | 11R22.5 | 14PR 144/142M | TETBR69 | 105 | 6175 | 5840 | 8.25 | 7.50,8.25 | 41.48 | 11.00 | 19.4 | BLK |
| 11R22.5 | 16PR 146/143M | TETBR70 | 120 | 6610 | 6005 | 8.25 | 7.50,8.25 | 41.48 | 11.00 | 19.4 | BLK | |
| 295/75R22.5 | 14PR 144/141L | TETBR85 | 110 | 6175 | 5675 | 9.00 | 8.25,9.00 | 39.92 | 11.73 | 19.4 | BLK | |
| 295/75R22.5 | 16PR 149/146L | TETBR86 | 123 | 7160 | 6610 | 9.00 | 8.25,9.00 | 39.92 | 11.73 | 19.4 | BLK |
*Every effort has been made to verify the accuracy of the listed Information.
Transamerica Tire cannot be held responsible for any discrepancies,and as such the information should be considered as approximate.
